Pass Your Nutanix SE Academy NCSC-Level-1 Exam on Apr 08, 2022 with 80 Questions
NCSC-Level-1 Free Exam Study Guide! (Updated 80 Questions)
NEW QUESTION 44
A customer buys ultimate licensing and wants to use the built-in Nutanix software encryption on their new AHV cluster. The customer needs to create three storage containers and asks the consultant to complete the process as fast as possible.
In which order should the cluster be deployed?
- A. Create Cluster -> Encrypt Cluster -> Install License Key -> Create Storage Containers
- B. Create Cluster -> Install License Key -> Encrypt Cluster -> Create Storage Containers
- C. Create Cluster -> Create Storage Containers -> Encrypt Cluster -> Install License Key
- D. Create Cluster -> Install License Key -> Create Storage Containers -> Encrypt Cluster
Answer: D
NEW QUESTION 45
A customer has engaged a Nutanix consultant to deploy a cluster consisting of two NX-3460-G6 blocks. The consultant arrives at the customer site and fines the following:
* One rack with a total of 5U available
* Two ToR switches with 14 total available ports
* Dual PDUs with six available sockets
What will prevent the consultant from successfully installing the cluster?
- A. Insufficient network ports for communication.
Insufficient sockets for power allocation. - B. Insufficient rack space for block installation.
Insufficient sockets for power allocation. - C. Insufficient network ports for communication.
Insufficient sockets for power allocation. - D. Insufficient sockets for power allocation.
Rack space may not be continuous. - E. Insufficient network ports for communication.
Rack space may not be continuous.
Answer: B
NEW QUESTION 46
A consultant is running the Foundation VM using desktop virtualization software. No nodes are discovered.
What should the consultant verify first?
- A. Internal Network
- B. NAT
- C. Bridged Adapter
- D. Host-only Adapter
Answer: C
NEW QUESTION 47
During a six-node cluster deployment, one node fails to image successfully and Foundation is unable to automatically configure the cluster. The consultant decides to manually complete cluster formation with the successful nodes, then expand the cluster with the remaining unconfigured node.
Which command should be used to begin the process?
- A. cluster expand
- B. cluster create
- C. cluster start
- D. cluster status
Answer: B
NEW QUESTION 48
After installation, network ports are properly configured with the default active-backup bonding.
One 10GbE port goes to switch 1. Another 10GbE port goes to switch 2. A consultant tests failover by manually pulling one of the cables and notices it is taking too much time to failover, which is causing excessive packet loss.
What should the consultant enable to resolve this issue?
- A. Jumbo frames
- B. Portfast
- C. PAgP
- D. LACP on switch
Answer: B
NEW QUESTION 49
What is the minimum number of nodes required for a Nutanix Cluster to support Replication Factor 3 (RF3) on a storage container?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: C
NEW QUESTION 50
Which subnet is reserved for internal connectivity within a Nutanix Cluster?
- A. 192.168.5.0/23
- B. 192.168.5.0/26
- C. 192.168.254.0/24
- D. 192.168.5.0/24
Answer: D
NEW QUESTION 51
A consultant is imaging a Nutanix cluster with VMware ESXi. Foundation returns an error that the media is not a supported ISO. The consultant checks the whitelist file in Foundation and confirms that the version of the ISO is not listed.
Which three actions should the consultant take to resolve this issue? (Choose three.)
- A. Restart the imaging process in Foundation.
- B. Edit the whitelist file in Foundation.
- C. Download the iso_whitelist.json from the Support portal.
- D. Replace and save whitelist file in Foundation
- E. Obtain the MD5 checksum of the ISO and confirm MD5 checksum of ISO is listed.
Answer: C,D,E
NEW QUESTION 52

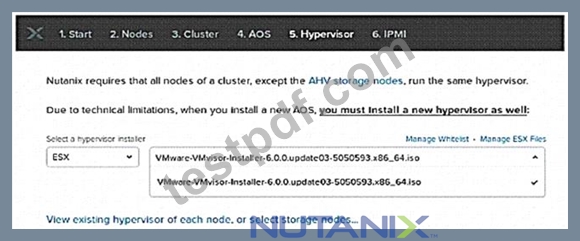

Refer to the exhibit.
A consultant is installing AOS 5.10 and ESXi 6.5 on three nodes. During the Foundation process, ESXi 6.5 is not available as one of the choices for hypervisor.
Which solution should the consultant use?
- A. Restart Foundation VM and refresh Foundation page.
- B. Update the Foundation whitelist from the support portal.
- C. Upload ESXi image to /home/Nutanix/foundation/isos/hypervisor/esx.
- D. Upload ESXi image to /home/Nutanix/foundation/nos/hypervisor/esx.
Answer: C
NEW QUESTION 53
What reference materials should be provided to the customer during the Knowledge Transfer?
- A. As-Built Guide, technical slides and checklist, links to documentation and resources
- B. As-Built Guide, technical slides and checklist, Network Diagram
- C. As-Built Guide, Project Plan, links to documentation and resources
- D. Questionnaire, technical slides and checklist, links to documentation and resources
Answer: A
NEW QUESTION 54
A consultant creates a Nutanix cluster using the 10.10.10.0/24 network and VLAN 10. The customer creates a VM network inside the Prism using VLAN 20. The customer starts to create VMs but is unable to ping the default gateway from these new systems.
What is causing the issue?
- A. The CVM/hypervisor cannot use the same VLAN as guest VMs.
- B. The switch port is not set up as a trunk.
- C. Only one VLAN is supported on AHV.
- D. The CVM/hypervisor must be on an untagged VLAN.
Answer: B
NEW QUESTION 55
A consultant is performing a Nutanix Cluster installation on Dell XC Core hardware. The consultant decides to use Foundation Portable for Mac to perform the installation. When the consultant arrives onsite, Foundation Portable is unable to locate the new nodes.
Which log should the consultant check to troubleshoot this issue?
- A. foundation.app/contents/resouces/log
- B. /home/nutanix/foundation/log
- C. ~/data/logs/foundation.out
- D. ~/data/logs/foundation
Answer: B
NEW QUESTION 56
During the Foundation imaging process, nodes are successfully imaged, but the cluster creation fails.
Which log should the consultant review to determine the cause?
- A. first_boot.log
- B. foundation.out
- C. service.log
- D. genesis.out
Answer: C
NEW QUESTION 57
A customer has a G6 AHV cluster with 4x10GbE NICs on each node and the following configuration:
* Networking is set to default
* Only two NICs are connected
The customer receives the following critical message:
The NIC is disconnected from the switch, or the switchport is failing.
What should the consultant verify to resolve the issue?
- A. The NICs are configured for active-backup.
- B. The VLANs are configured correctly on the switch or tagged on the cluster.
- C. The NICs are connected for balance-slb.
- D. The other two 10GbE connections are removed from the default bond.
Answer: A
NEW QUESTION 58
After uploading a hypervisor ISO during the Foundation process, a consultant sees a message that the MD5 sum for the hypervisor is not found in the Whitelist file.
Which step should the consultant take next to resolve this issue?
- A. Download the latest hypervisor ISO whitelist file from Nutanix portal.
- B. Download the hypervisor ISO again from the vendor website.
- C. Check the hypervisor version in the Nutanix Compatibility Matrix.
- D. Restart the Foundation process and upload the hypervisor again.
Answer: A
NEW QUESTION 59

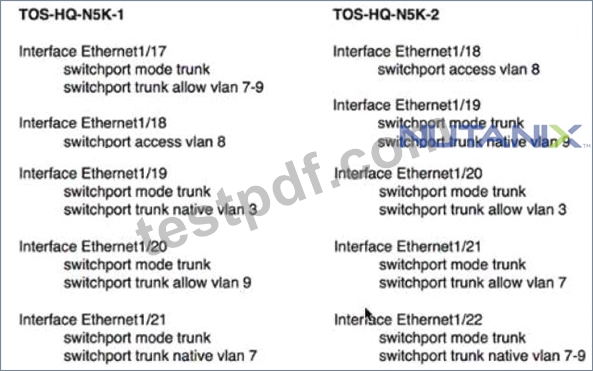

Refer to the exhibits.
A consultant is trying to test port failover on the node shown in the first exhibit. A continuous ping test is performed to the host. The consultant shuts down one of the links, after which the host ping request times out. The consultant tries to troubleshoot the issue with the customer and sees the information shown in the second exhibit on their Cisco Switches:
What is causing the issue?
- A. Bad SPF+ cables are on the active interface.
- B. PortFast is not enabled on the port connected to the host.
- C. There is a Native VLAN mismatch on the switchport.
- D. The wrong VLAN is tagged on the host.
Answer: C
NEW QUESTION 60
A customer would like to re-image an existing cluster. The Foundation Applet and Foundation VM is unavailable to them.
How can the consultant access Foundation-as-a-Service (FaaS)?
- A. Through <CVM-IP> :8000
- B. Through <cluster-IP> :9443
- C. Through <CVM-IP> :9443
- D. Through <cluster-IP> :8000
Answer: A
NEW QUESTION 61
A customer is running out of storage in an ESXi cluster. The customer wants to add storage without paying for an additional hypervisor license.
Which option should the consultant recommend to meet the requirement?
- A. Select the storage-only checkbox during Foundation and then expand the cluster in Prism.
- B. Buy a new node to meet the requirements of the storage-only node specifications.
- C. Convert the cluster to AHV to support storage-only node requirements.
- D. Edit the factory_config.json file to configure the node as storage-only and then expand the cluster in Prism
Answer: B
NEW QUESTION 62
A consultant is using the Foundation applet to create a cluster. During the process the consultant refreshes the progress bar web page and is concerned when nothing loads.
What should the consultant do to verify that Foundation has completed successfully?
- A. Return to the Foundation configuration page and start over.
- B. Update Java on the Foundation VM.
- C. Connect to any CVM IP address from a web browser.
- D. Restart the Foundation process.
Answer: C
NEW QUESTION 63
After deploying an AHV cluster connected to Cisco Nexus 9k switches, unexpected network behavior is observed. The consultant needs to rule out physical network mis-cabling without returning to the datacenter.
Which command from the host should the consultant run?
- A. show cdp neighbors
- B. show interfaces
- C. show lldp neighbors
- D. lldpctl
Answer: D
NEW QUESTION 64
A consultant is installing Nutanix AOS on Cisco UCS.
Which method should be used to install AOS on UCS hardware platforms?
- A. Foundation Applet
- B. Foundation as a Service
- C. Foundation Central
- D. Foundation VM
Answer: D
NEW QUESTION 65
While preparing for a new four-node cluster installation, the consultant has a Tech Review Call with the customer. The hardware is as follows:
* 4 nodes in 1 Block
* 8 x 10 GbE Ports
* 4 x 1 GbE IPMI Ports
* Adequate Ethernet ports are available
* Ethernet cables are correct and available
* Adequate rack space is available
Which remaining item must be confirmed as available onsite?
- A. Redundant 110v power
- B. Redundant 208v power
- C. Fibre Channel switches
- D. Crash Cart
Answer: B
NEW QUESTION 66
During the Knowledge Transfer, the customer askes where to find the details about their Nutanix environment, such as IP addresses, storage containers, and configuration.
Where can the consultant find this information?
- A. Tech Checklist
- B. Support Portal
- C. As-Built Guide
- D. Test Plan
Answer: C
NEW QUESTION 67
......
